Y27 series four column hydraulic press for sheet metal drawing

Home / Product center / Sheet Hydraulic Drawing Press / Y27 series four column hydraulic press for sheet metal drawing

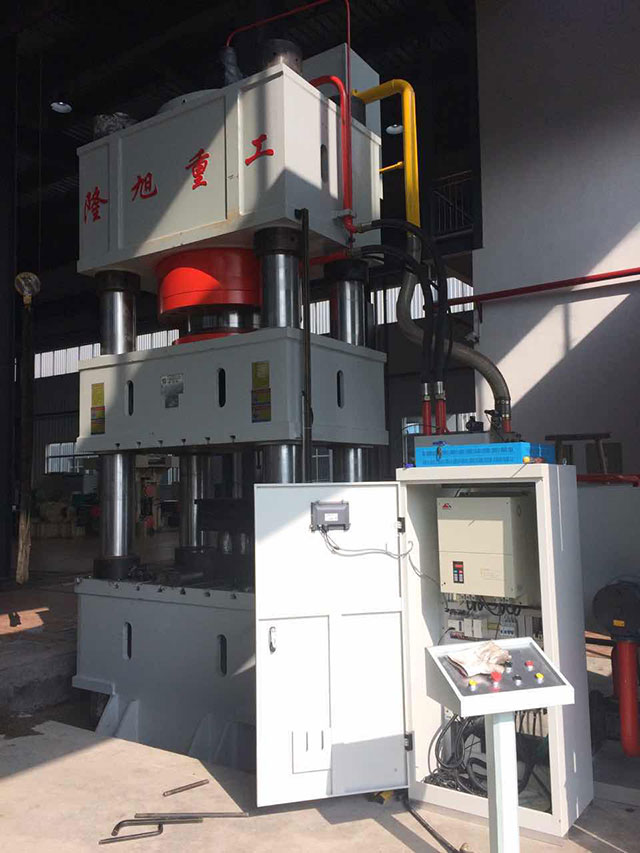

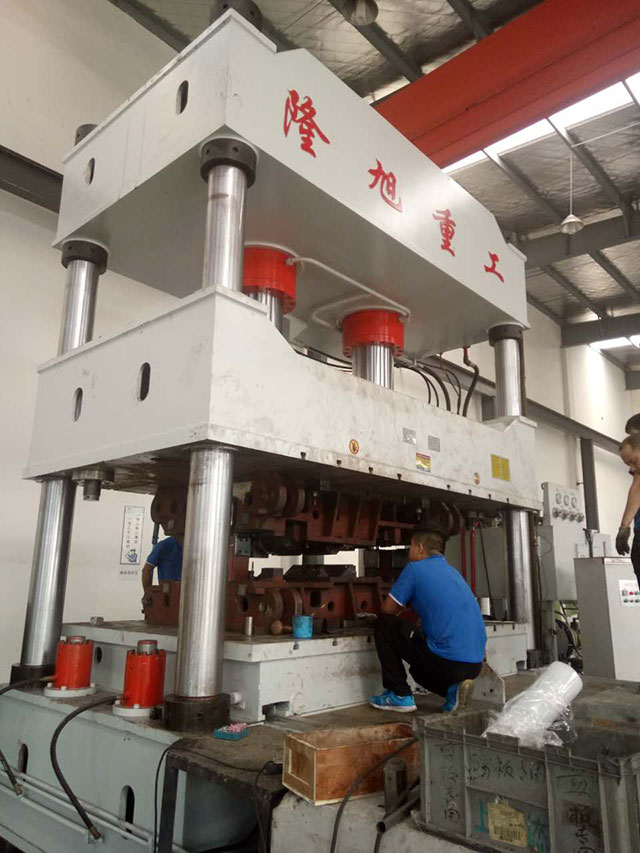

Y27 series four column hydraulic press for sheet metal drawing

Hydraulic Drawing Press

1、Be applicable to all stretching, bending, forming, feeding, blanking, flanging and other processes.

2、With structure design optimized by computer, the four-columnstructure is simple, economical and practical; the frame type structure has good rigidity, high accuracy and strong anti-deviation capacity.

3、The hydraulic control system adopts plug-inintegrated systemwith reliable operation, long service life, small hydraulic shock, reducing connecting pipe and leakage point.

4、The electric system is controlled by PLC, which is of compact structure, agility, reliability and flexibility.

5、The operation panel selectioncan not only realize two kinds of forming processes of constant control and pressure control, but also three processes cycle with pad, on-pad and ejection.

Technical parameter:

Item		Unit	YLX27 -63	YLX27 -100	YLX27 -200	YLX27 -315	YLX27 -500	YLX27 -630	YLX27 -1000
Nominal Force		KN	630	1000	2000	3150	5000	6300	10000
Return Force		KN	180	260	480	630	1000	1250	1250
Cushion Force		KN	200	500	800	1250	1000	2500	3000
Max pressure of liquid		KN	Mpa	25	25	25	25	25	25
Stroke	Slide	mm	450	700	710	800	900	1000	1400
Stroke	Cushion	mm	180	300	250	300	350	400	350
Max Daylight		mm	900	1000	1120	1250	1500	1600	2300
Slide speed	Descent	mm/s	120	150	100	100	140	100	100
	Pressing	mm/s	11-15	20	6-15	6-12	5-15	6-14	13
	Return	mm/s	130	80	80	60	70	65	60
Table Dimensions	L-R	mm	560	720	1000	1250	1400	2600	2500
Table Dimensions	F-B	mm	500	580	900	1120	1400	1750	2000
Cushion Dimensions	L-R	mm	310	470	800	900	1100	1950	2000
Cushion Dimensions	F-B	mm	300	430	630	800	1100	1200	1500
Height of table above Floor		mm	750	750	500	600	500	500	0
Total Power		KW	11	11	22	22	45	45	90
Total Weight		Kg	4200	6500	14200	18000	29500	77000	102000
Overall Dimensions	L-R	mm	1420	1960	2698	3018	4120	5222	5800
	F-B	mm	1265	1620	2530	2530	3600	3785	6050
	Height above Floor	mm	2698	3250	4110	4560	5545	5970	8098
	Depth below Floor	mm		300	800	1000	1200	1400	2400
Form of frame			Four Column	Four Column	Four Column	Four Column	Four Column	Four Column	Four Column
