YLX32-100 4 column hydraulic press machine

Home / Product center / Four Column Hydraulic Press / YLX32-100 4 column hydraulic press machine

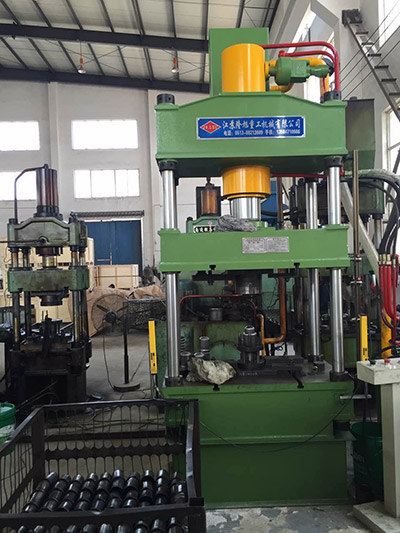

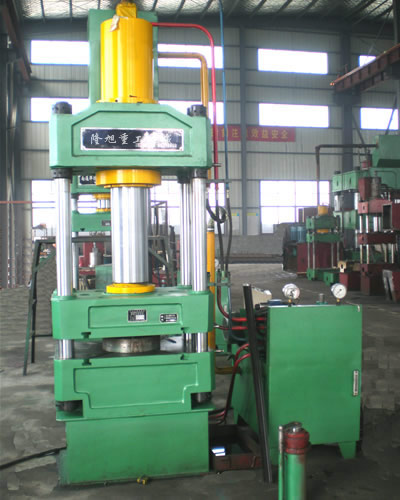

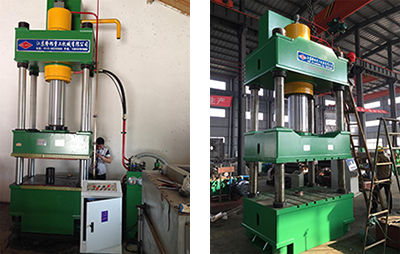

YLX32-100 4 column hydraulic press machine

PERFORMANCE FEATURES:
1、Computer optimized structure design, three beam four-post type structure, simple, economic and practical;
2、Adopt and cartridge valve integrated hydraulic control system, reliable
operation, long service life, small hydraulic impact, reduce the connection pipe and the leak point;
3、Independent electrical control system, reliable operation, intuitive,
easy maintenance;
4、The centralized control buttons, three operation modes of adjustment, manual and semi-automatic;
5、Through the selection of operation panel, which can realize the fixed distance and constant pressure two forming process, and have confirmed when rolling, and other functions;
6、The slider working pressure, load fast descending and slow work into schedule scope may need to adjust according to the craft;
7、Adopt common control system or servo control system.
YLX32 Series four-column hydraulic press technical data

參數名稱　parameter		單位Unit	YLX32-40	YLX32-63	YLX32-100	YLX32-100E	YLX32-160C	YLX32-200A	YLX32-315A	YLX32-400	YLX32-500B	YLX32-500C	YLX32-630
公稱力 Rated pressure		KN	400	630	1000	1000	1600	2000	3150	4000	5000	5000	6300
頂出力 Knock-out force		KN	120	190	190	400	400	400	630	630	1000	1000	1000
液體最大工作壓力 Max. hydraulic pressure		MPA	25	25	25	25	25	25	25	25	25	25	25
滑塊最大行程 Stroke of Slide		MM	400	500	600	600	700	700	800	800	900	900	900
頂出活塞最大行程 Stroke of knock-out piston		MM	150	160	200	200	250	250	300	300	350	350	350
開口高度 Daylight		MM	600	700	900	900	1000	1100	1200	1300	1500	1500	1500
滑塊滑行速度　Speed of slide	空載下行 Empty descending	MM/S	100	100	100	120	120	100	100	100	100	100	100
	工作 Pressing	MM/S	10	25	10	16	10	12	12	12	12	12	12
	回程 Return	MM/S	52	80	50	80	50	80	60	45	80	80	50
工作臺有效尺寸Effective area of table	左右L-R	MM	500	560	720	750	1000	1000	1250	1250	1400	2200	1500
工作臺有效尺寸Effective area of table	前后F-B	MM	460	500	580	640	800	900	1200	1200	1400	1400	1500
機器外型尺寸 Overall dimensions of machine	左右 L-R	MM	1800	2400	2500	2700	2700	2825	3235	3235	4060	6500	4200
	前后F-B	MM	1200	1400	1500	1700	1700	1500	1500	1500	1800	1800	2000
	地面以上高Height above ground	MM	2600	3100	3150	3400	3400	3725	4295	4500	4995	4740	5600
電機功率 Motor power		KW	4	7.5	7.5	11	11	15	18.5	22	37	37	45

參數名稱parameter		單位Unit	YLX32-800	YLX32-1000	YLX32-1250	YLX32-1600	YLX32-2000	YLX32-2500	YLX32-3000	YLX32-3500	YLX32-4000	YLX32-5000
公稱力 Rated pressure		KN	8000	10000	12500	16000	20000	25000	30000	35000	40000	50000
頂出力 Knock-out force		KN	1600	1600	2000	2000	2000	2500	2500	3150	4000	8000
液體最大工作壓力Max. hydraulic pressure		MPA	25	25	25	25	25	25	25	25	25	25
滑塊最大行程Stroke of Slide		MM	900	900	900	1000	1200	900	1200	1200	900	900
頂出活塞最大行程Stroke of knock-out piston		MM	450	450	450	300	300	450	450	450	360	350
開口高度 Daylight		MM	1600	1600	1600	1800	2000	1800	1800	2500	1500	1500
滑塊滑行速度Speed of slide	空載下行Empty descending	MM/S	100	80	80	100	100	100	120	120	100	100
	工作 Pressing	MM/S	8	10	8	10	10	10	10	10	8	8
	回程Return	MM/S	50	50	50	80	70	60	80	100	60	80
工作臺有效尺寸Effective area of table	左右 L-R	MM	1800	2000	2000	2400	2500	2500	4000	4000	5000	5000
工作臺有效尺寸Effective area of table	前后 F-B	MM	1600	1800	1800	2000	2000	2380	2500	1500	1600	1600
機器外型尺寸 Overall dimensions of machine	左右 L-R	MM	4800	5200	5200	6500	6500	6600	9000	8000	12100	12100
	前后 F-B	MM	4000	4300	4300	4500	4500	4500	4600	2500	3700	3700
	地面以上高Height above ground	MM	6000	6450	6450	6500	6800	8450	10000	11000	7650	7850
電機功率 Motor power		KW	45	60	60	≈120	≈145	≈145	≈180	≈250	≈350	≈450
